Water Misting Cooling System Kit Summer Sprinkler Brass Nozzle Outdoor Garden Dust Removal Spray Hose Irrigation Set - EU Plug 1

Description :

Water Misting Cooling System Kit Summer Sprinkler Brass Nozzle Outdoor Garden Dust Removal Spray Hose Irrigation Set

Features :

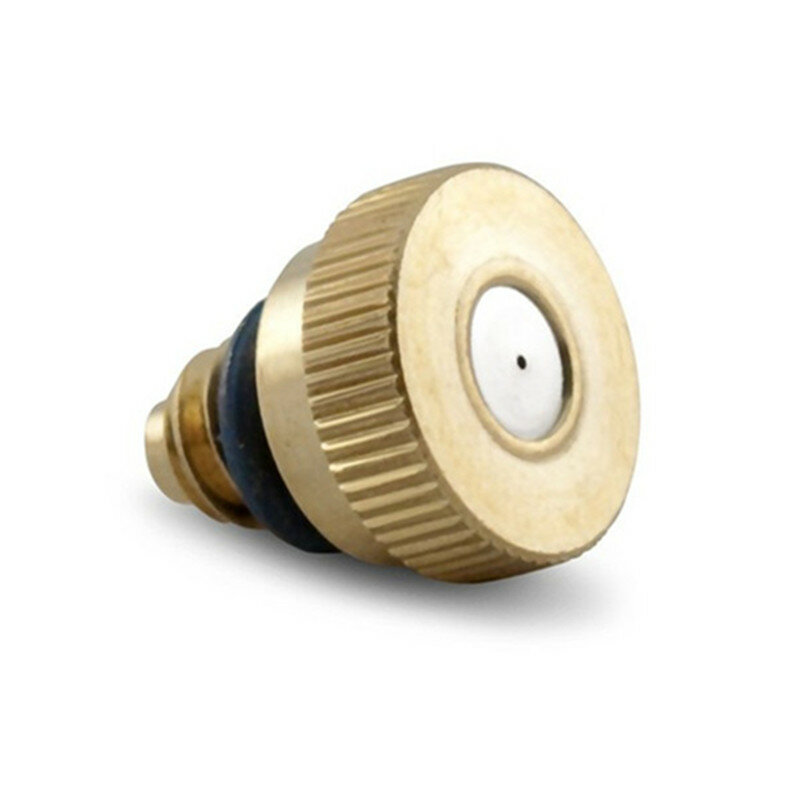

 -The fine misting nozzles are made of brass bodies, inlayed stainless steel core guide vanes, the liquid forms a centrifugal whirl in the guide vanes, spray tiny open-core type particles from the jet hole.

-Can be widely used , whether you want to cool your patio, poolside, backyard, or other outdoor area, the Portable Mist Cooling Kit can go wherever you need it.The nozzle diameter is available from 0.1 mm to 0.8 mm (0.4 mm is recommended),well-made, compare the using costs and gas humidification, able to save more than 10 times.

-This series of nozzles does not require air assistance, the system is simple, spray a fine mist, sufficient atomization, has the advantages of energy saving, water saving, low cost and good effect; Stainless steel spray sheet is processed by advanced forging technology,  strong durability, the working life is about 2.5 times compared with similar products.

-The nozzle can be completely atomized by the pressure of the tap water, and the effect of using the high-pressure water pump is better.

Specification :

Installation Steps :

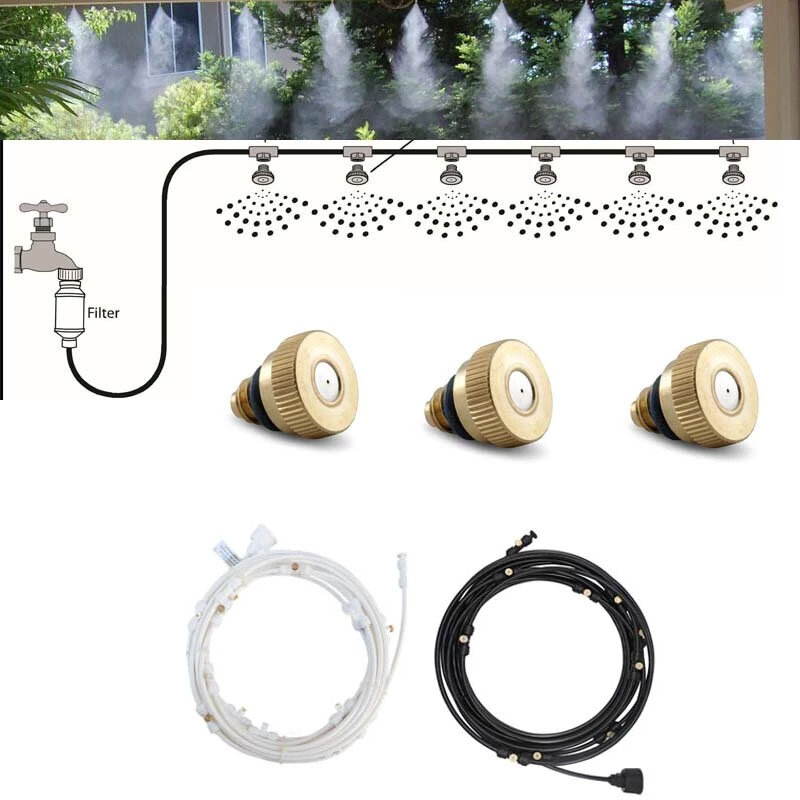

1.  It is recommended to installed the misting system at a height of 2.5m-3m.

2.  Connect the adapter to the water tap.

3. Turn on the water tap to wash the system for 1 minute to purge the system and remove any impurities.

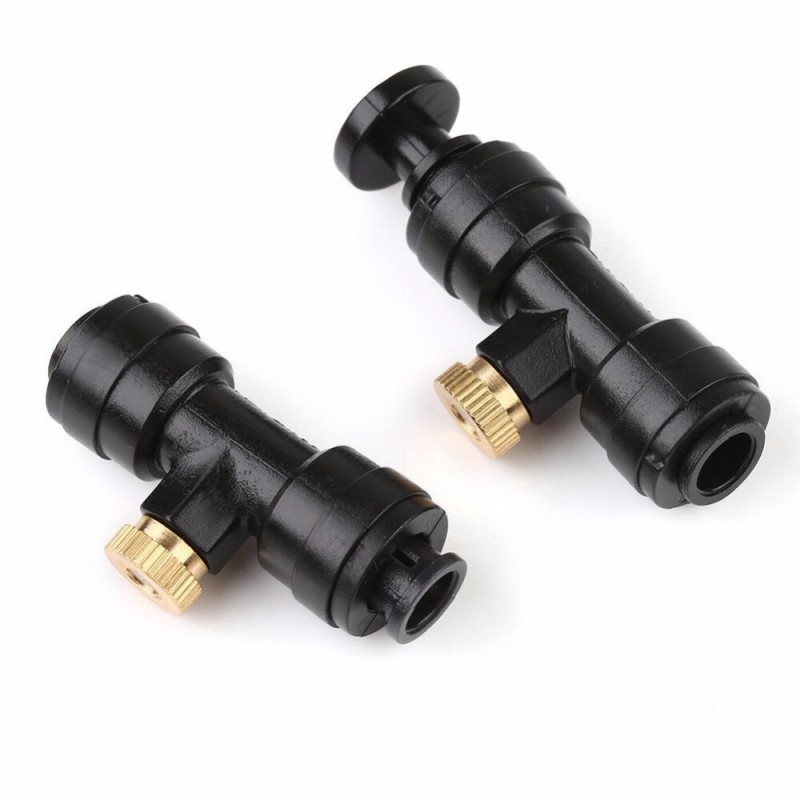

4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.

5. Turn on the water tap to wash the system for 2 minutes to insure that the system is fully purged.

6. Turn the water off and install the last nozzle into the fitting with the end plug.

7. Fix the misting line by the cable ties saddle clamps provided.

8.  Turn on the tap slightly until jets are working, enjoy the cooling misting system .

9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time

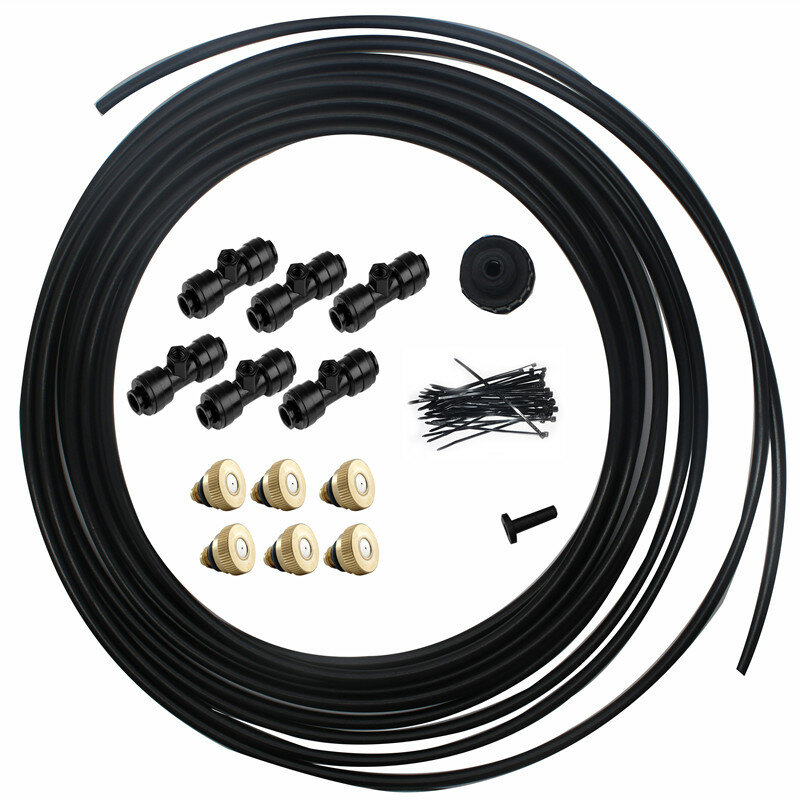

Package Included :

6m:

3M x Water supply hose with Standard water tap adapter

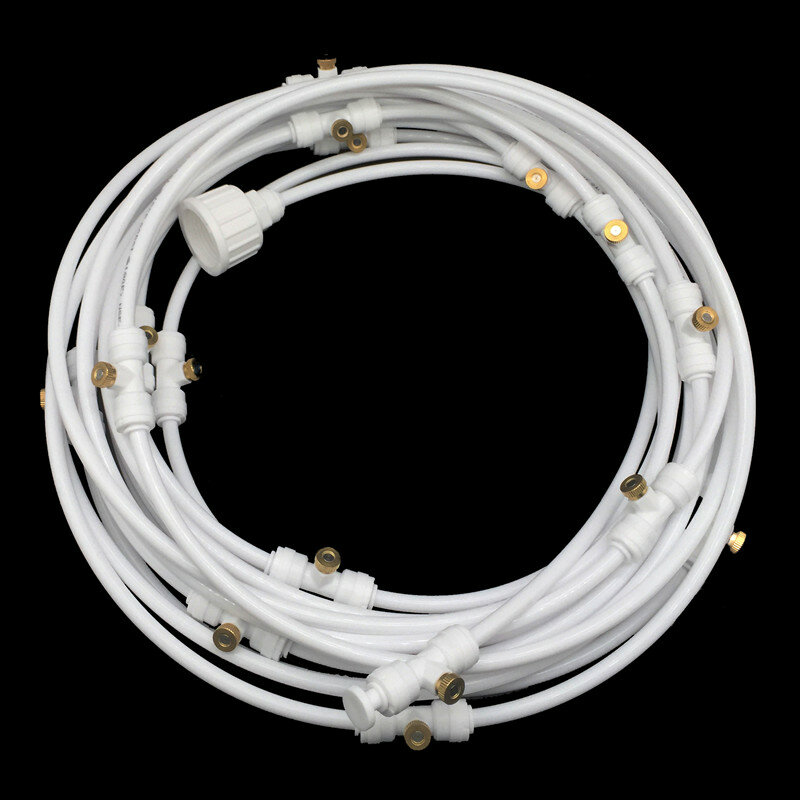

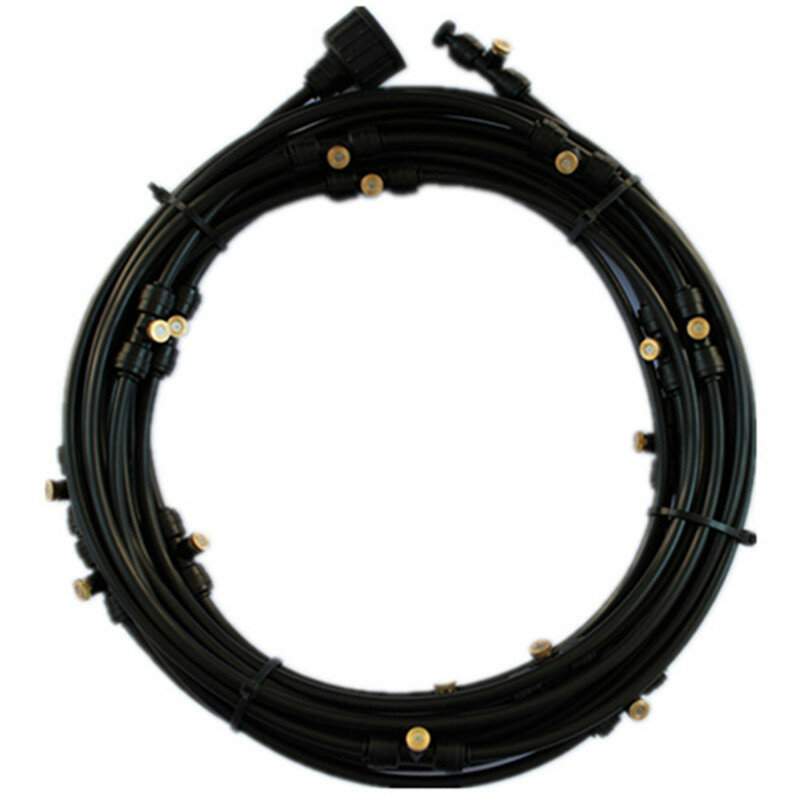

3M x Assembled misting line with 6 nozzle seats

6 x Brass misting nozzles

20 x Saddle clamps

20 x Cable ties

1 x Tap connection

1 x Plug

9m:

3M x Water supply hose with Standard water tap adapte

6M x Assembled misting line with 11 nozzle seats

11 x Brass misting nozzles

30 x Saddle clamps

30 x Cable ties

1 x Tap connection

1 x Plug

12m:

3M x Water supply hose with Standard water tap adapter

9M x Assembled misting line with 16 nozzle seats

16 x Brass misting nozzles

40 x Saddle clamps

40 x Cable ties

1 x Tap connection

1 x Plug

15m:

3M x Water supply hose with Standard water tap adapter

12M x Assembled misting line with 21 nozzle seats

21 x Brass misting nozzles

50 x Saddle clamps

50 x Cable ties

1 x Tap connection

1 x Plug

18m:

3M x water supply hose with Standard water tap adapter

15M x assembled misting line with 26 nozzle seats

26 x brass misting nozzles

60 x Saddle clamps

60 x cable ties

1 x tap connection

1 x plug
